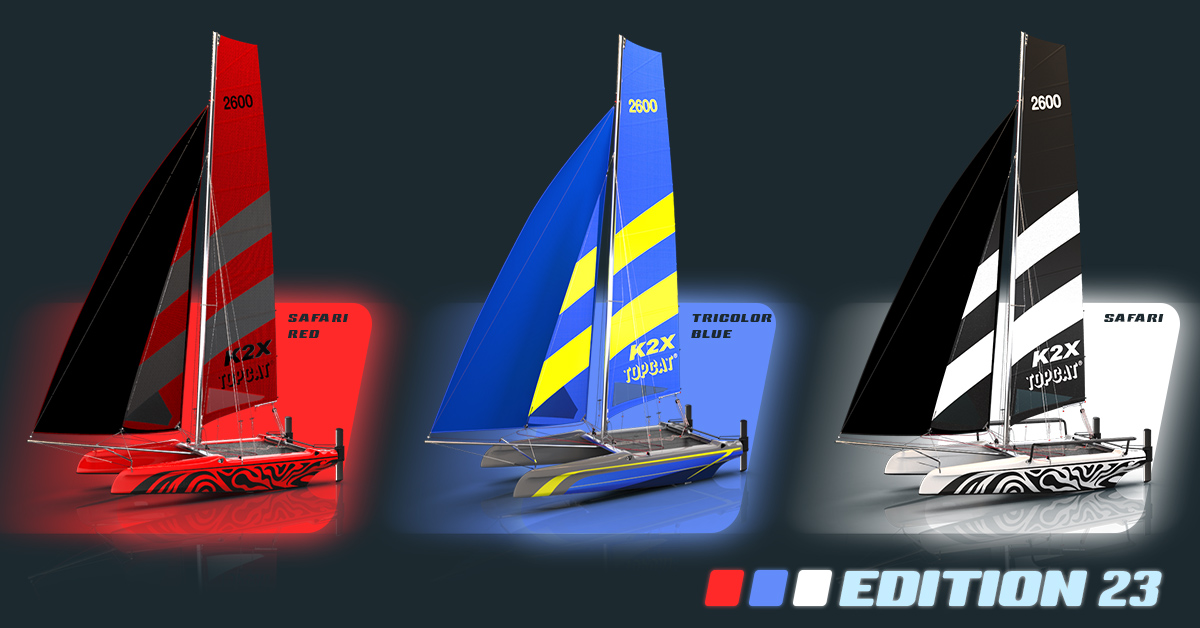

TOPCAT special edition
Precision surface graphic integrated into hull geometry
Context
A digitally developed curved stripe precisely aligned with the complex hull geometry, forming a distinctive limited edition.
Product

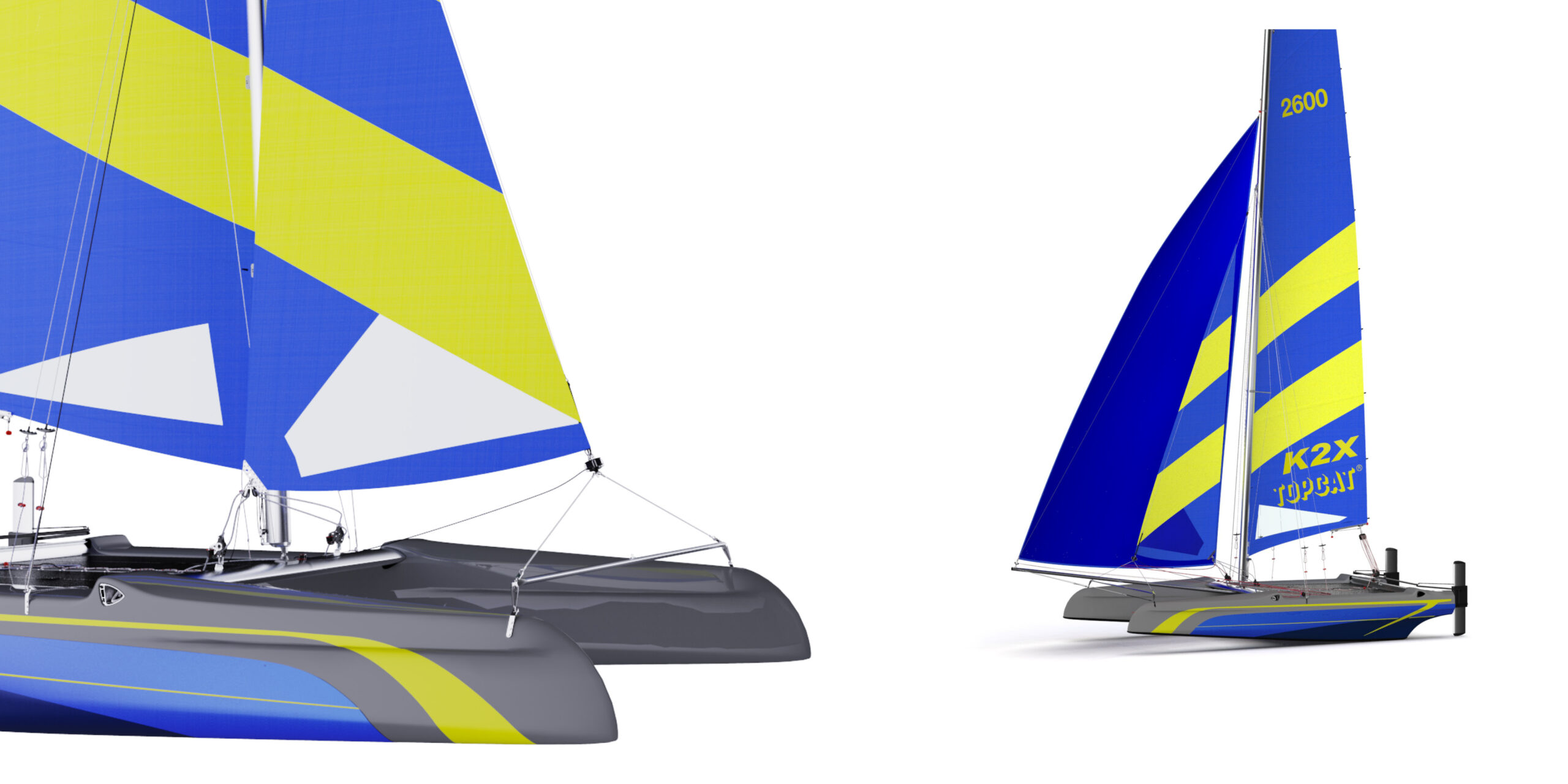

The stripe was not applied as a simple decal, but defined directly in relation to the 3D hull geometry. Its curvature had to appear visually smooth and balanced across changing radii and compound surfaces.

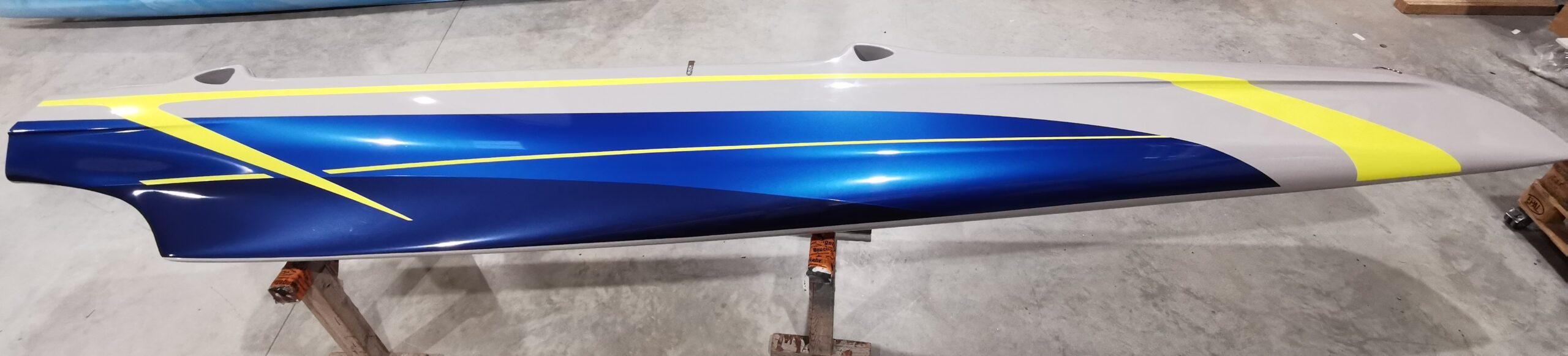

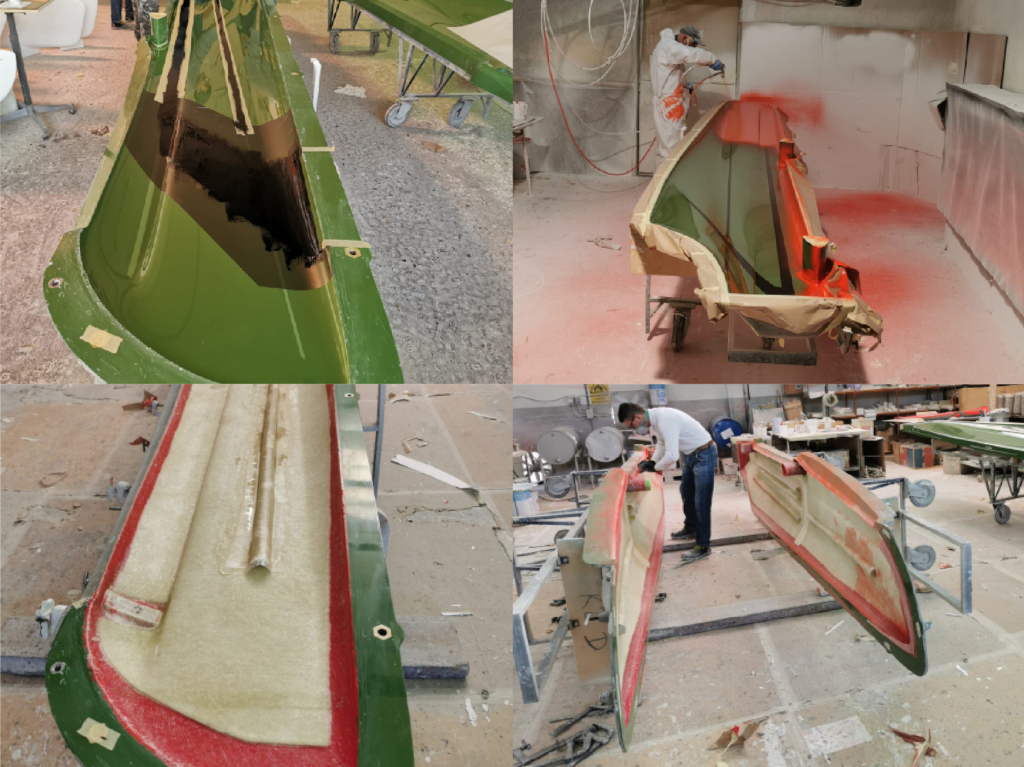

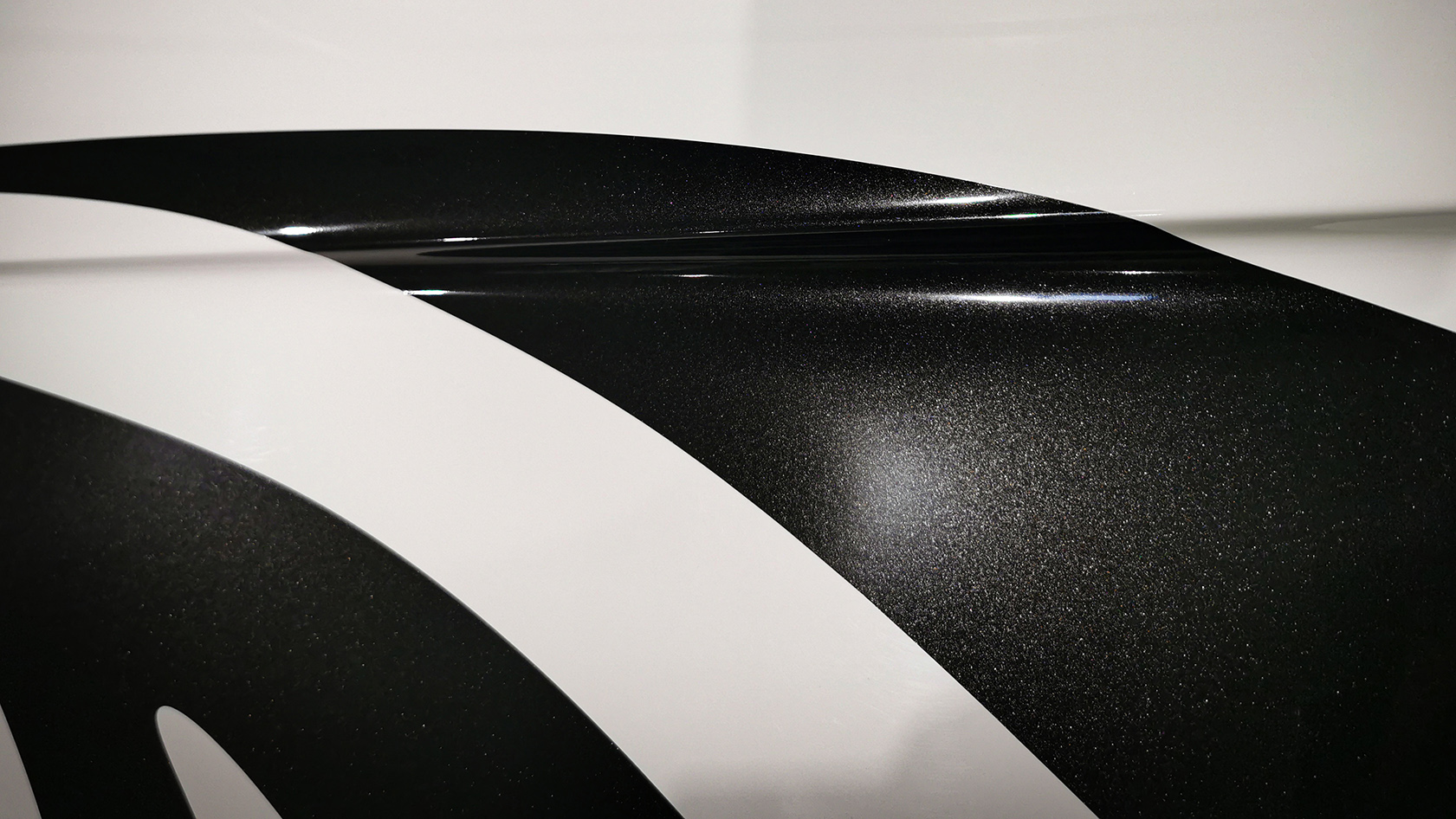

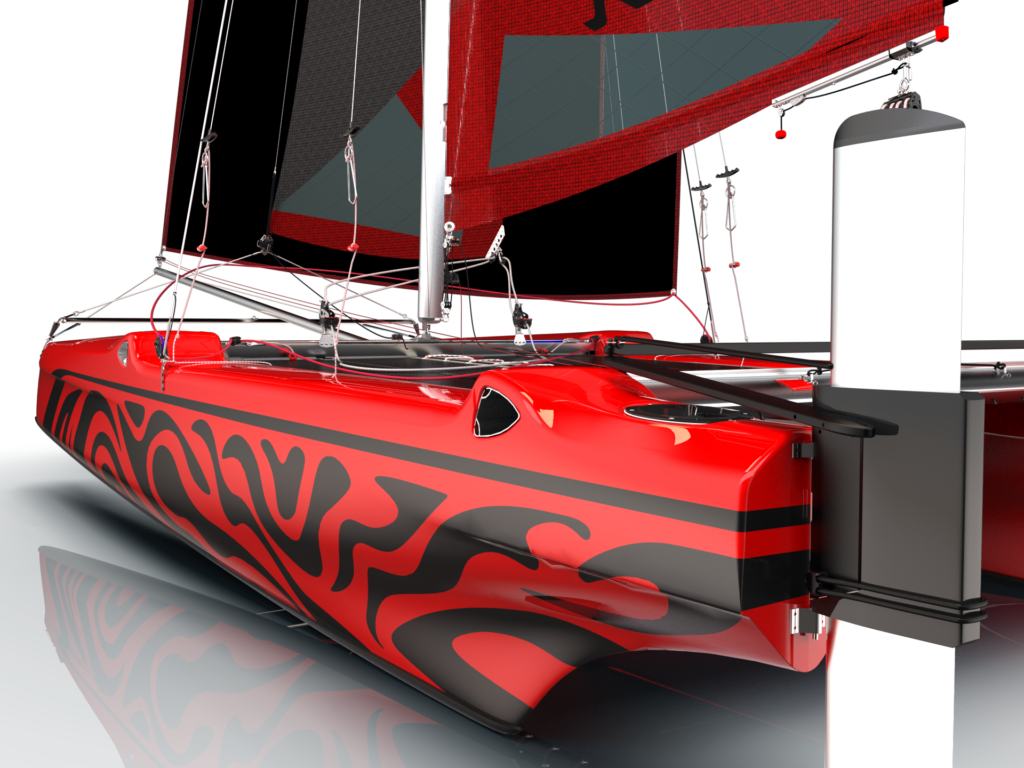

Using CAD data of the hull, the line was developed digitally and translated into precisely plotted stencils positioned inside the production molds. Multiple iterations were required to eliminate optical distortion and ensure a flawless, continuous flow across both hulls.

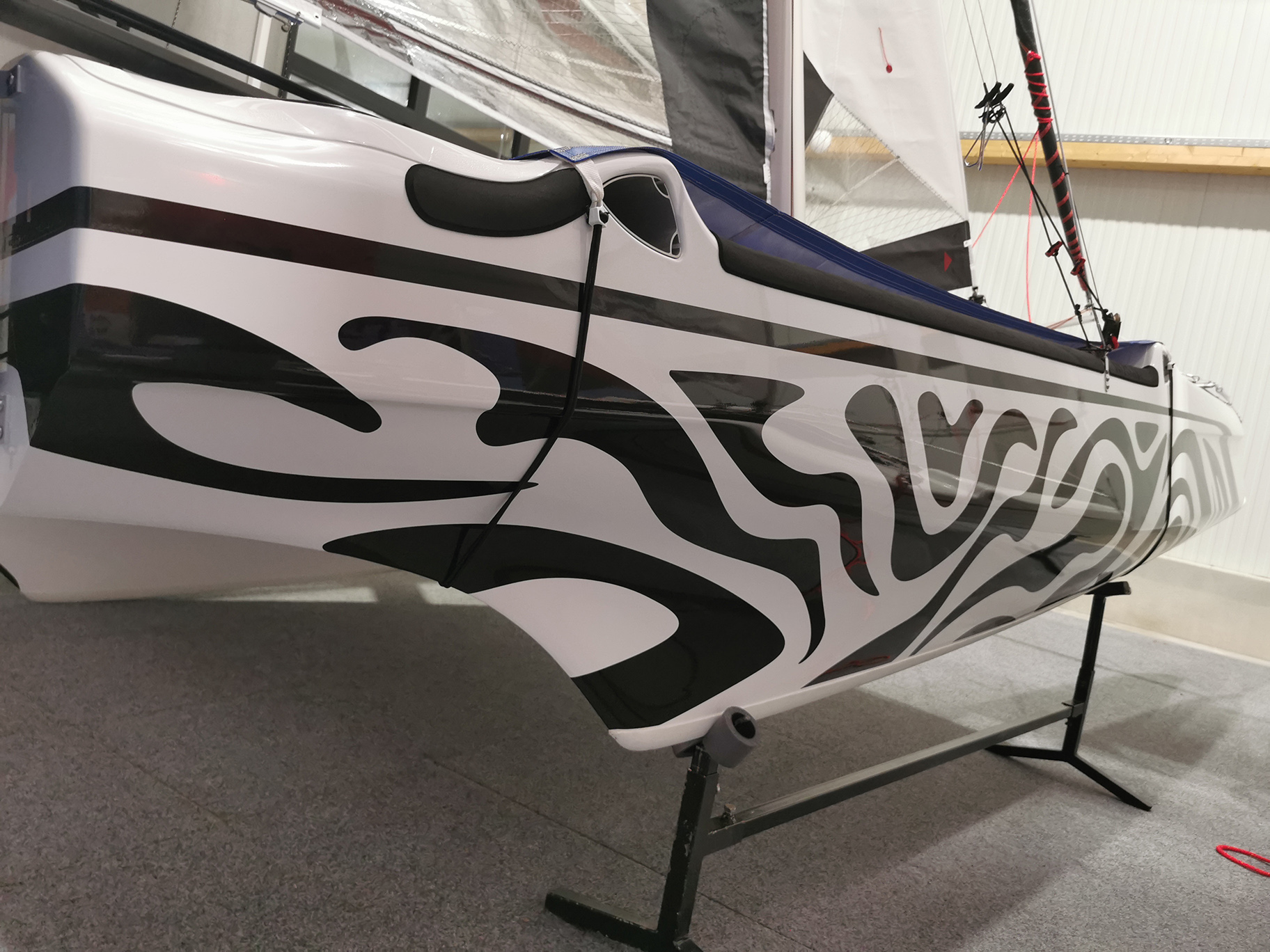

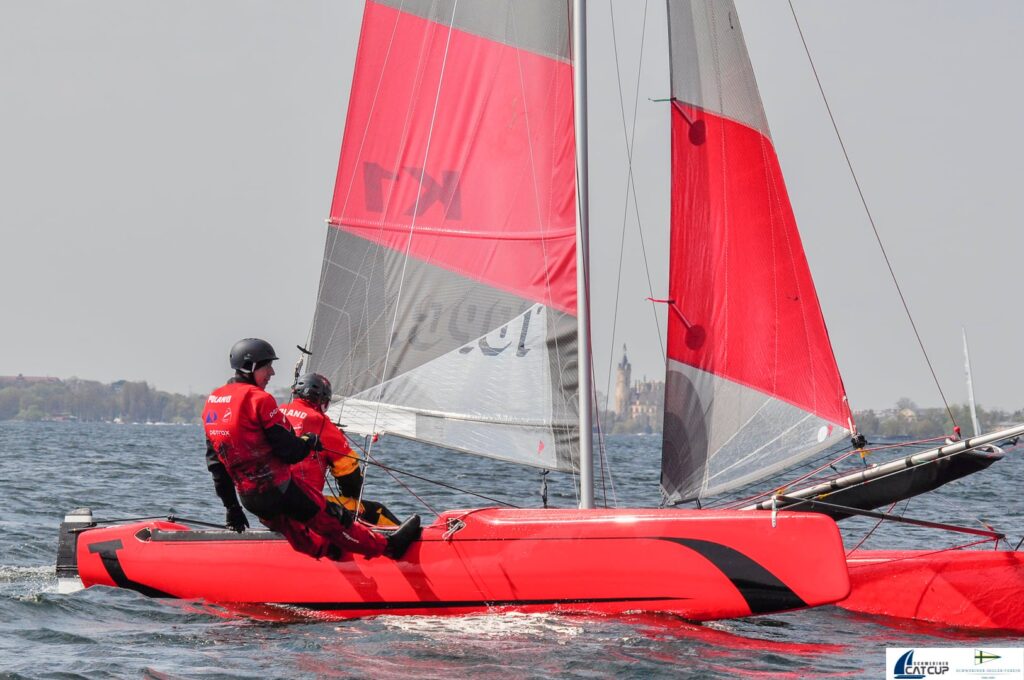

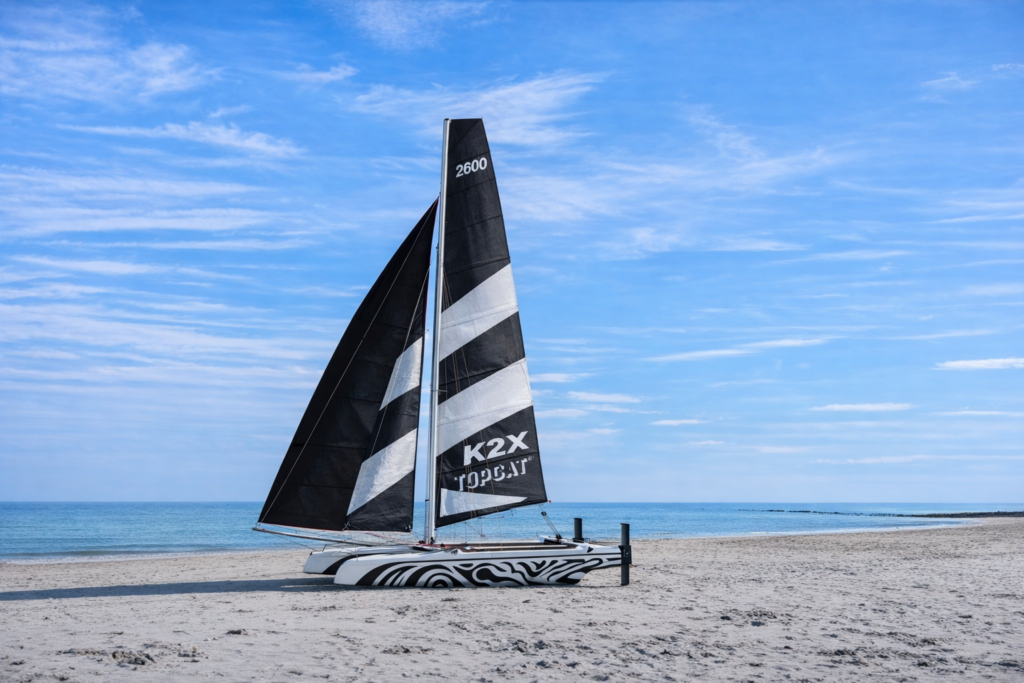

The result was a limited signature edition that elevated the visual identity of the boat while remaining fully integrated into the manufacturing process.
Contribution
- Development of stripe concept and surface integration strategy
- Digital curve construction based on hull CAD data
- Iterative refinement to eliminate visual distortion
- Translation into production-ready stencil data
- Coordination with shipyard during mold implementation
- On-site validation and quality control
Design Development
Snapshot
Year
2023
Status
In production
Client
TOPCAT GmbH, Inning, Germany
Role
Design consultant, industrial designer, graphics, technical documentation.
